Subject: Bae systems esu-127A 10KVA inverter p/n 8002250G1

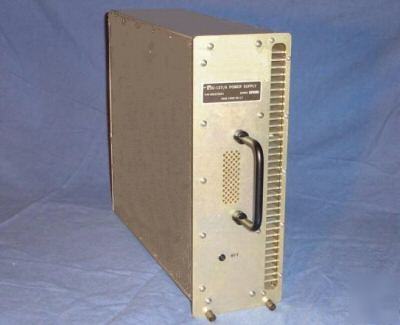

Recent design, the ESU-127A is a rugged high-reliability aircraft grade DC-AC converter. (More commonly known as inverter). Used on U.S. Airforce C-130 cargo aircraft. Rated at 10KVA MAX, it converts aircraft battery power to 120 VAC / 80 A peak power. Contact us for multiple item discounts.
MILITARY GOODS END USE CERTIFICATE
BAE Electronic Systems Integration, Inc
Quality and Reliability Design Standards:
Temperature Shock(Steady State)
Mil-Std 810F -40c to +70f & 25% RH
MIL-STD-810D random: 10 – 300 Hz @ 0.02 g²/Hz, 2000 Hz @ 0.002 g²/Hz, 3.9 total g rms 3 hrs/axis Sine: 30 Hz @ 20 g, 60 Hz @ 10 g, 90 Hz @ 6.6 g, 120 Hz @ 5.0 g, 16.0 total g rms, 3 axes
MIL-STD-810D functional shock, 40 g
MIL-STD-202F 18 pulses, 60 g, 9 msec
MIL-STD-810D Operational test, 9 g for 1 minute along 3 mutually perpendicular axes
MIL-STD-810D 240 hrs, 88% relative humidity
MIL-STD-810D explosive decompression (40 K ft.).
MIL-STD-810D 40,000 ft., 1000 – 1500 ft./min. to 70,000 ft., unit functioning
