Autoquip scissor lift 27K lb capacity, 24" travel

UpUp


Subject: Autoquip scissor lift 27K lb capacity, 24" travel

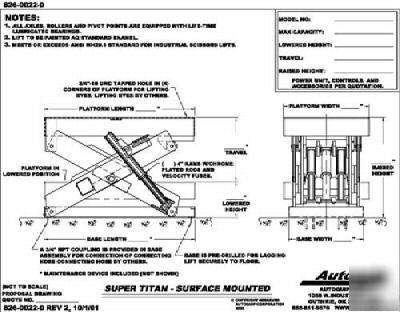

Super Titan Scissor Lift27,000 lb Capacity, 24" Travel12 5/8" Lowered Height, 36 5/8" Raised Height BRAND NEW, DIRECT FROM MANUFACTURERAUTHORIZED DISTRIBUTOR Product Number: 24K27 Delivered to you in 10-15 Days(depending on production schedules)

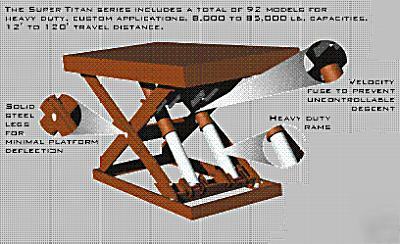

Super Titans are the "Big Boys" of the Autoquip line of scissor lifts. These units are capable of lifting tons of material and are fitted with oversize platforms to accomodate the largest of loads. The double set of scissor legs gives added stability for the larger platform sizes offered in this series.
· Lubricated-for-life composite bearings on all pivot points
· Solid steel legs (8", 10", or 12" x 1 1/2" thick)
· Turned, ground, polished and hard-chromed axle pins
· Double-wire braided hydraulic hoses
· Velocity fuses on cylinders
· Four-inch hydraulic rams with solid steel rods, hard
· Built and designed in accordance with ANSI MH29.1
· Factory tested to 110% of capacity
· Maintenance-free bearings, no greasing
· Minimal platform deflection
· Extended hose life for added safety
· High efficiency motor provides faster raising times
· Easy servicing of hydraulic valve components
· Controlled descent in case of severed hose - Safety first! Power Supply· The 5 hp electric motor will satisfactorily operate on any of the
following 3 phase voltages: 208, 220, 230, 240, 440, 460, or 480. The model listed is the 24K27. All other models are available.
* Remote 5HP, 230/460V/3ph-60hz, continuous duty motor on 11 gallon steel reservoir (1 1/2 times standard raising speed, reduces raising time 40%), $639.00
* 230 Volt single phase 5HP power unit, $720.00
* 115 Volt single phase 3HP power unit, $1,049.00
* Dipstick oil reservoir, $20
* Oil immersion heater, $615.00
* Sight gauge on reservoir, $39
* Wall mounting brackets for power unit, $69
* Pressure hose (add per foot - specify length), $7 per ft
* 5 HP continuous running power unit with special, integral directional valving mounted on larger reservoir, $822.00
* Power unit cover for weather resistant applications, $445.00
* Guarded NEMA 1 up/down footswitch (in addition to push-button). $89.00
* Key operated on/off security lockout switch (in addition to push-button), $185.00
* Upper travel limit switch mounted, but unwired, $245.00
* Twist lock-male and female (for control signal only), $296
* No coast - Drift resistant, remote power unit add, $311.00
* Provision for low temperature service to minus 40 degrees Fahrenheit, $422.00
* Provision for fireproof phosphate ester type fluids (not water glycol), $533.00
* Manual valve to shut off pressure line, $129.00
* Drip pan for 5HP power unit, $129.00
* Oil immersion heater, $580.00
* (4) hydraulic locking pins in platform to lock into upper floor, $5,475
* Hardened runner strips and cam followers, $3,155.00
One Year - Electrical and Hydraulic Components and Hydraulic Cylinder Seals
