Alfa laval semi-welded plate heat exchanger, transfer

UpUp


Subject: Alfa laval semi-welded plate heat exchanger, transfer

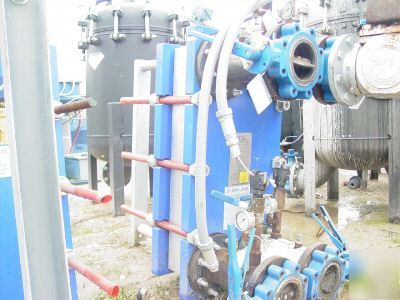

This Alfa Laval semi-welded plate heat exchanger was manufactured in 2000 and was in operation for less than 6-months prior to plant shutdown. As shown, the heat exchanger is in excellent condition and is ready for use. I have (3) of these heat exchangers with area's of 67.14, 113.7, and 216.92. Each units are may be increased or decreased by adding more stainless steel plates. This sale is for the 67.14 sq. ft. heat exchanger with the following tag info:
MAWP: 75 psi @ 230 F -(same on all) MDMT: -20 F @ 75 psi -(same on all) Serial #: 30105-57062 Year: 2000 Model: M10-FG -(113.7 = M10-BFG), (216.92 = M10-FG) AREA: 67.14 Square Feet "A" Dim: 86 MM W/ 28 0.50 PLTS -(113.7 = 141 MM W/ 46 0.50 PLTS), (216.92 = 262 MM W/86 0.50 PLTS)
For more info on this product please follow this link: http://www.alfalaval.com/ecoreJava/WebObjects/ecoreJava.woa/wa/showNode?siteNodeID=5447&contentID=-1&languageID=1
F.O.B. is from Berlin, WI 54923. For any more equipment needs please check us out on the web at americanindustrialsystems.com
