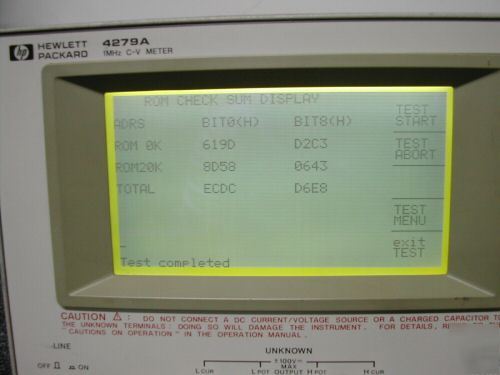

Brand / Model: HP/Agilent HP4279A Description: Agilent/ HP 4279A C-V Meter, 1 MHz Manuals: Operating & Service Manual in PDF, c/w either 16047A or 16048D Dimension: 177(H) x 426(W) x 498(D) mm, 15.5 Kg , 23 kg after packing Passes all self test and is working well. I This unit is selling at USD$17650 at new price. Body condition: Fair, need slight cleaning Agilent/ HP 4279A C-V Meter, 1 MHz The 4279A 1MHz C-V Meter offers the optimum solution for increasing quality and throughput when measuring the capacitance vs bias voltage characteristics of semiconductors. The 4279A measures capacitance over a range of 0.00001pF to 1280.00pF with a basic accuracy of 0.1% and a 6 digit display resolution while sweeping the DC bias voltage. An internal, programmable dc bias sweep source with 0.1% voltage accuracy throughout the ±38V range assures very low measurement error due to low bias voltage uncertainty. It makes the 4279A ideal for the precise characterization and testing of varactor diodes, MOS diodes, etc. Measurement time can be selected from three modes of 10ms, 20ms and 30ms/meas to maximize productivity. The 4279A's very fast ranging and high speed GP-IB data transfer capabilities reduce test time. The automatic bias polarity control feature allows quick selection of the correct polarity bias voltage for the device under test. This new function eases manual testing of samples in incoming/outgoing inspection and provides a simple method of polarity control for automatic test systems. * C-V measurement for performing doping profile of wafers * C-V characterization and sorting of varactor diodes * Capacitance testing of rf mixer and switching diodes * Testing capacitors with an applied DC bias for incoming inspection * Measurement Time: 10ms/20ms/30ms * Measurement Accuracy: 0.1% (20ms) * Internal DC Bias: 0 to ±38V, 0.1% programmable sweep * Measurement Range: 0.00001pF to 1280pF Please email me for detail specification in PDF (For item 30 Kg – 40 Kg, and items purchases above USD$1500.00) <<=RATE PER KILO=>> Please Multiply the weight again the rate to get actual amount · While we believe in our local Postal Service (Singpost), it is up to you to trust your own Postal services as once the goods reached the seller destination, the local Postal service will take over. · Refund is calculated as follow: Final Price – All Freight Cost – Bank Charges, there is no exception · Items are sold "As-Is" unless otherwise stated. · We will list what information we have and the condition of the item to the best of our ability. · Please verify specifications, compatibility etc. on your own. · Items are in used condition unless otherwise stated. This means that items may or may not have scratches, dings, dents, scuffs, marks, cracks, scrapes, discoloration, dust, dirt or other conditions related to use and or transport. · We will attempt to note any major damage in the listing. · There are no warranties or guarantees unless specifically stated in the listing. · Most units are running at 230V/50 Hz unless stated otherwise. · Items do not come with documentation, drivers, cords, keys, attachments, accessories, consumables or support unless stated in the listing · 2 days against DOA, DOA means that it cannot be power on totally out, if it can be power on and it pass the self test · If you need to be sure, you can ask me to do some test for you but you need to tell me how to connect it up and what kind of equipment is needed. · Wire transfer plus Bank Fee Processing: $10 International (Prefer). · A surcharge of 5.9 % of total price for conversion and processing fee. · A packing charge of USD$50.00 for Big item, for small items it will be USD$25.00 |
