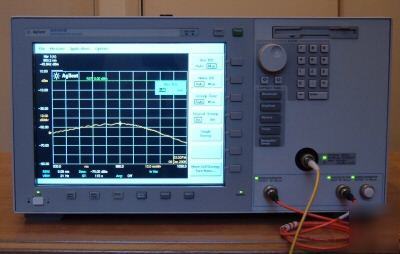

We poovide Agilent Calibration Certificate. The item is still in Manufacturer Warranty The Agilent 86141B is a benchtop optical spectrum analyzer (OSA: 600nm-1700nm) with a monochromator output and photodiode input. In the filter or instrument mode, the analyzer acts as a fixed-tuned, variable wavelength, variable bandwidth, bandpass filter. It filters the input light at a specified wavelength. The filtered light is available at the front-panel monochromator output connector. Adjust the analyzer's resolution bandwidth to change the amount of filtering. (Any of the resolution bandwidths may be chosen.) One application of the preselector mode is the filtering (that is, selecting) of one particular mode of a laser source. There are application programs: passive components; WDM. Unit condition: *The unit is in good working condition. It was recently wavelength calibrated with accuracy of +- 200pm from 600 nm to 1700 nm. The 86141B Option H17 is a standard optical spectrum analyzer that has been modified to provide preselector capability for single mode (9/125um) applications. H17 has (2) monochromator outputs (9/125 and 50/125 um) and the photodetector input (50/125um). This modification greatly increases the instruments susceptibility to vibration and temperature for preselector operation. Spectrum analyzer operation is not affected. The internal transfer switch has been removed. This special option requires a jumper to be installed on the front panel from monochromator output. |
