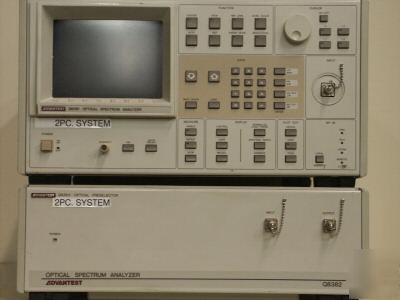

Optical Spectrum Analyzer "2 Piece System" Consist of Q8381 and Q83811. Measurement range (wavelength): 550nm to 1750nm. 0.1, 0.2, 0.5, 1.0, 2.0, 5.0nm +0.5nm (23°C), +1.0nm (10°C to 40°C) -80dBm to +10dBm (1.1um to 1.6um), -70dBm to +10dBm (0.7um to 1.6um), -60dBm to +10dBm (0.6um to 1.75um) 0.2, 0.5, 1.0, 2.0, 5.0, 10.0dB/div and linear 60dB as measured 1.0nm from peak wavelength - 50dB as measured 0.5nm from peak wavelength - Wavelength 1152nm, 1523nm (0.1nm resolution) When preselect is used: 15dB or less (0.9um to 1.6um) - 20dB or less (0.8um to 1.65um) Through mode: 8dB or less (1.1um to 1.6um) - 12dB or less (0.8um to 1.65um) Using G1-50/125nm fiber for input/output. Span: Up to 50 nm (range synchronized once) Sweep Time: 2.5 seconds or less (with span 50nm or less, RAPID mode, LOG display) with measurement range of -30dBm or more, one time average. Processing and display functions: Memory Function: The equivalent of up to three screens of measurement data and up to nine measurement conditions can be stored (protected by backup battery) Display Function: Two-split display (overlap display, upper/lower display), cursor display. Calculation: Automatic optimum measurement conditions set (auto function) 1 Peak Search 2 Averaging 3 Half Bandwidth Measurement 4 Peak Center 5 Normalizing. Data Output: GPIB and thermal printer included as standard (printing speed: 8seconds or less) Direct Plot: Data Displayed on the picture tube can be plotted on paper by directly connecting the Advantedt platter (R9833) or HPGL built-in plotter by using the GPIB interface. All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor. If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit... If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money. Be sure to add me to your favorites list! |
