Adira QH150 -40 165 ton hydraulic press brake

UpUp


Subject: Adira QH150 -40 165 ton hydraulic press brake

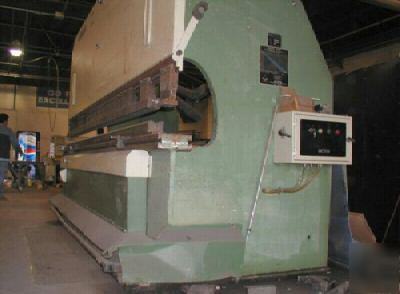

(1) PRE OWNED 1989 ADIRA MODEL QH 150-40 HYDRAULIC PRESS BRAKE
SERIAL NUMBER: QH15040 2421 1989
OVERALL LENGTH OF BED & RAM 13’ 3.4
DISTANCE BETWEEN HOUSINGS` 10’2
OPEN HEIGHT WITH PUNCH HOLDER 9.25
APPROACH 0.96 INCH PER SECOND
HIGH APPROACH 2.16 INCH PER SECOND
DISTANCE FLOOR TO TROP OF BED 32
MAIN MOTOR HORSEPOWER 12 HP 220/440/3/60
OIL TANK CAPACITY 26.5 US GALLONS
ADIRA 24 MOTORIZED BACK GAGE
FULL TONNAGE THROUGHOUT STROKE
*MACHINE REQUIRES A PIT OR RISER BLOCKS FOR OPERATION
APPROXIMATE OVERALL WEIGHT 24,000 LBS.
APPROXIMATE OVERALL DIMENSIONS
More pictures at www.alecomachinery.com
