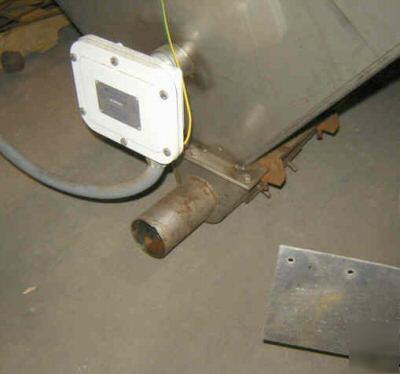

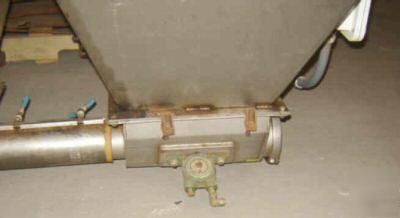

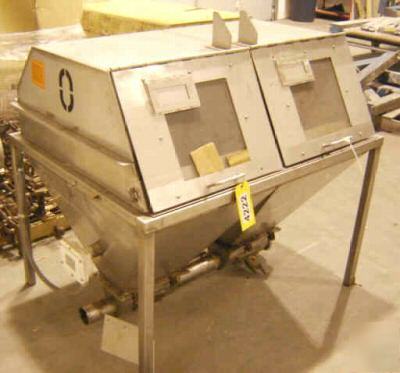

TWO COMPARTMENT STAINLESS STEEL BIN FOR BAG DUMP STATION STAINLESS STEEL DOORS WITH GLASS VIEWING PANELS EACH COMPARTMENT IS APPROXIMATELY 7 CUBIC FOOT CAPACITY IDEAL FOR EMPTYING BAGS INTO PNEUMATIC CONVEYING SYSTEM. LEFT INTERIOR HAS DOUBLE BAR SEPARATOR AND BINDICATOR LEVEL PROBE. RIGHT INTERIOR HAS CROSS BAR SEPARATOR GRATE WITH BINDICATOR LEVEL PROBE. BINS COME COMPLETE WITH 3 STAINLESS STEEL PNEUMATIC CONVEYING TUBE COMMON TO BOTTOM OUTLET OF BOTH BINS AND HAS A PNEUMATIC VIBRATOR MOUNTED ON SIDE OF TUBE. OVERALL HEIGHT OF BIN IS 48 WITH A DEPTH OF 39 AND LENGTH INCLUDING LEGS IS 51. |
