Subject: 6' x 5/8" bertsch initial pinch plate bending roll

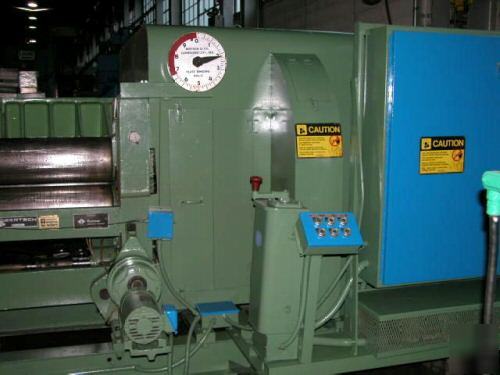

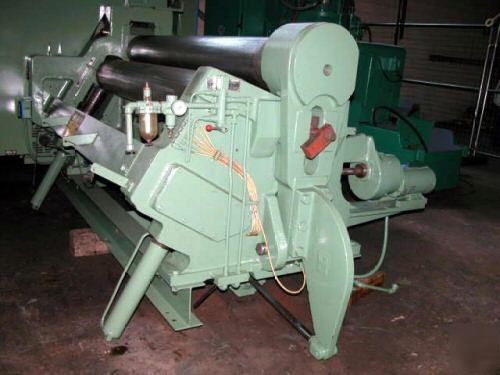

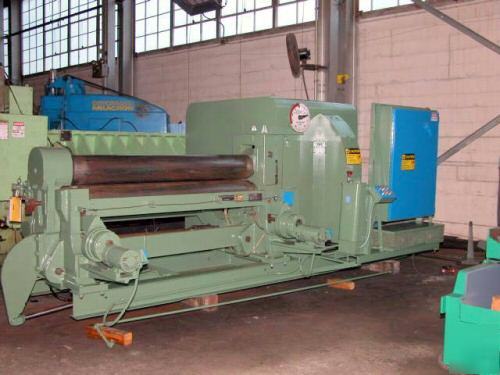

6' X 5/8" BERTSCH MODEL #9 INITIAL PINCH PLATE BENDING ROLL
CAPACITY - ( BOILER DUTY ) - 6' X 5/8"
CAPACITY - ( PIPE DUTY ) - 6' X 1/2"
OVERALL LENGTH OF ROLLS - 6'2"
MAIN DRIVE MOTOR - 15 HP 230/460/3/60 A.C., 1155 RPM
ROLL ADJUSTMENT MOTORS ( 2) - 5 HP 230/460/3/60
APPROX. DIMENSIONS (IN.): 204 X 96 X 78
*** IN GOOD WORKING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** FREE LOADING ONTO OPEN TRUCK, PRICE INCLUDES A 30 DAY RETURN PRIVILEGE ***
*** FOR FURTHER INFORMATION PLEASE CALL ASK FOR ALEX, THANK YOU ***
