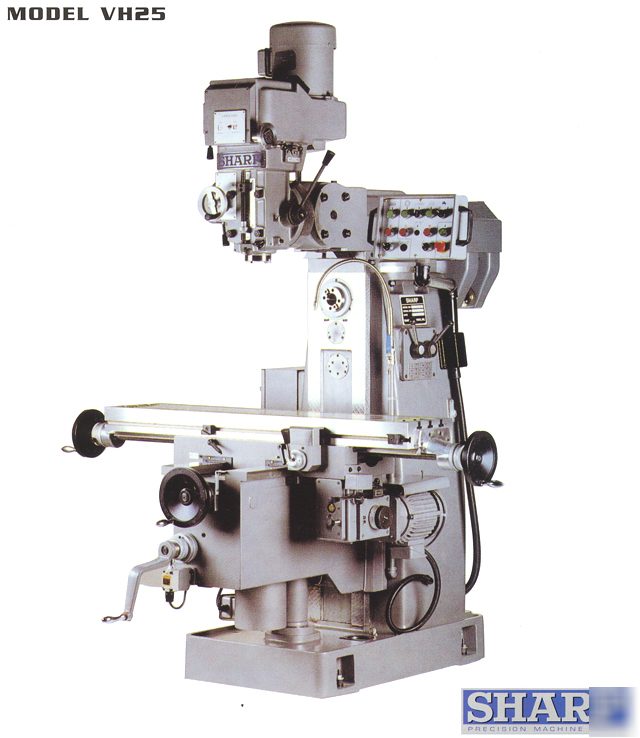

56" VERTICAL MILL, Sharp VH-25 Vert/Horz Mill
56" VERTICAL MILL, Sharp VH-25 Vert/Horz Mill
NEW SHARP VERTICAL/HORIZONTAL MILL
Throat distance (min-max): 12.8"-30.7"
Wiring voltage: 220V, 3 Ph, 60 Hz
Speed (vari speed): 60-4,500 RPM
Quill feeds (IPR): 0.0016, 0.003, 0.006
Head tilt - right to left (each way): 90
Head tilt - front-to-back (each way): 45
Wiring voltage: 220V, 3 Ph, 60 Hz
Spindle Center Line to Table (min-max): 0 - 17.4"
Floor area (w x d): 82" x 75"'
Net weight (lbs; approximately): 4,200
Turcite Saddle Ways, Box Type Column Ways
Power Feed Table (7/8 - 27 IPM) with Rapid Traverse (82.5 IPM)
1" Diameter Arbor and (2) Arbor Supports
Hardened and Ground Double Box Knee Ways
Meehanite Casting - 4200 Lbs Net Weight
Flood Coolant Sytem w/Splash Pan
OPTIONAL ACCESSORIES (call for pricing):
Servo Power feed for saddle (cross) with safety handles
Kurt or Imported Milling vises
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars
Machine Location: HARRISON, NJ
