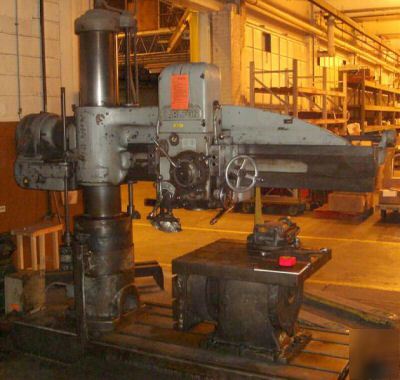

5' x 11" carlton 1A radial arm drill

UpUp


Subject: 5' x 11" carlton 1A radial arm drill
Head Travel On Arm................... 60"
Column Diameter...................... 11"
Maximum Spindle Radius .............. 68.5"
Minimum Spindle Radius .............. 17.5"
Maximum Spindle To Base ............. 55.25"
Minimum Spindle To Base ............. 14.75"
Vertical Travel of Spindle In Head .. 12"
Spindle Diameter (Driving Dia.) ..... 2.5"
Spindle Taper ....................... Morse No. 4
Spindle Speeds ...................... 0 - 1500 RPM
Traverse of Arm on Column ........... 28.5"
Traverse of Head on Arm ............. 51"
Swing of Arm ........................ 81"
Feeds (6 Changes) ................... .006" - .025"
Main Drive Motor .................... 5 Hp
