Subject: #325-183 cincinnati duplex-spdl production mill 19538

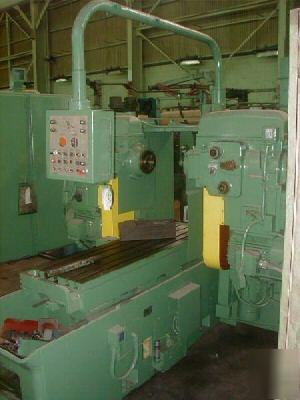

#325-183 CINCINNATI-MILACRON "HYPOWERMATIC"
DUPLEX-SPINDLE PRODUCTION MILL
New 1973, Serial No 311431D5Z-0001, Model 325-183,
(2) 25 HP Individually Motorized Spindles
Table Dimensions (Overall) W x L........ 18" x 68"
Table Working Surface, W x L............ 18" x 60"
Table Longitudinal Travel (X-Axis)...... 36"
Spindle-Head Vertical Travel (Y-Axis)... 18"
Quill Cross Adjustment (Z-Axis)......... 4"
Horizontal-Spindle C/L to Table, Min.... 6"
Horizontal-Spindle C/L to Table, Max.... 24"
Table-Center to Spindle-Carrier......... 12.5"
Quill Diameter.......................... 7.5"
Spindle Nose Diameter................... 5.06"
Spindle Taper........................... #50 NSTD
(16) Spindle Speeds, Range.............. 30 to 1200 RPM
Longitudinal Table Feeds, Range......... .5 to 150 IPM
Power Rapid Table Traverse.............. 300 IPM
(2) Spindle Motors, Horsepower.......... 25 HP
Overall Dimensions, L x D............... 11'4 x 9'4"
Overall Height.......................... 7'1"
Weight, Approximately................... 16840 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $3,950.00
Note: THIS ONE IS MISSING THE VALVING FOR TABLE DIRECTION.
BENT BRAKETING FOR PUMP.PUMP NEEDS TO BE REMOUNTED,LINES NEED TO BE
REPAIRED OR REPLACED. ALSO MISSING SOME QUILL RETRATION
PARTS.SOME PUSH BUTTONS AND METERS ARE GONE FROM PENDANT.
All machines/equipment subject to prior sale.
