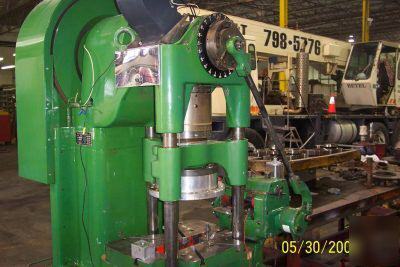

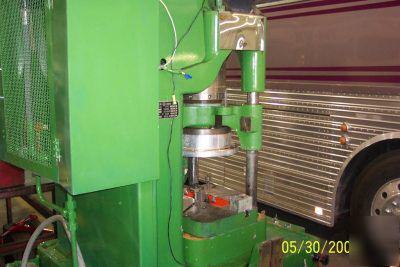

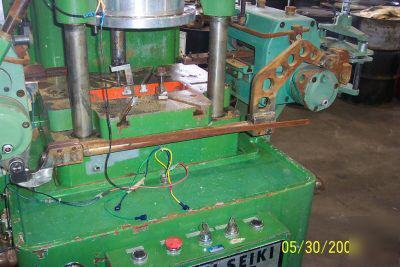

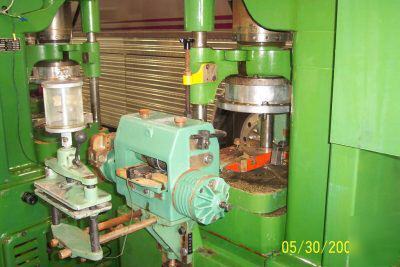

30 Ton Bruderer High-Speed Straight Side Press Model: BSTA-30-1C Serial: 385 New: 1980 Tonnage Capacity ............................ 30 Ton Stroke (Adjustable) .................. 0.63" - 1.57" Maximum Shut Height ........................... 8.5" Slide Area ............................. 12.28" Dia. Bed Area ..... 19"(L-R) x 11"(F-B) Total Bed Area .... 21"(L-R) x 17.50"(F-B) Distance Between Posts ... 13"(L-R) x 11"(F-B) Maximum Strip Width .......................... 4.72" Feed Length Adjustment ................... 0 - 2.36" Strip Inlet Height .................... 1.90" - 4.0" Strokes Per Minute (Variable) .......... 100-800 SPM Opening in Bed ..... 12.5"(L-R) x 4.5"(F-B) Air Clutch & Brake with Selector Control - Automatic Cycle Control, Flywheel Drive w/ Integral Air Clutch & Air Brake, Four Piece Tie Rod Construction, Inching, Single Stroke or Continous Operation, 10" Windows in Uprights, 18"X 23"X1-1/2" Bolster and Central Lube System. |
