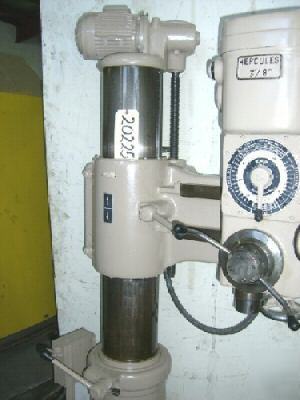

3'X8" hercules radial drill, 60-2000 rpm, 3 hp (20225)

UpUp


Subject: 3'X8" hercules radial drill, 60-2000 rpm, 3 hp (20225)
3' x 8", HERCULES, 60-2000 RPM, 4 M.T., Pwr Elevation, Box Table, 3 HP, Clean
Longitudinal Travel Head On Arm: 28"
Maximum Distance Spindle To Base: 48"
Minimum Distance Spindle To Base: 16-1/2"
Vertical Movement Of Arm: 24-1/2"
Spindle Speeds: (12) 60 to 2000 RPM
Drilling Capacity: 1-1/4" Steel, 1-9/16" Cast Iron
3 HP Spindle Motor, 1700 RPM 220/440/60/3
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
