26" ENGINE LATHE, Birmingham DLC-2660 10 HP,
26" ENGINE LATHE, Birmingham DLC-2660 10 HP,
New "Birmingham" Precision High Speed Engine Lathe
Model: DLC-2660 w/Removable Gap Block

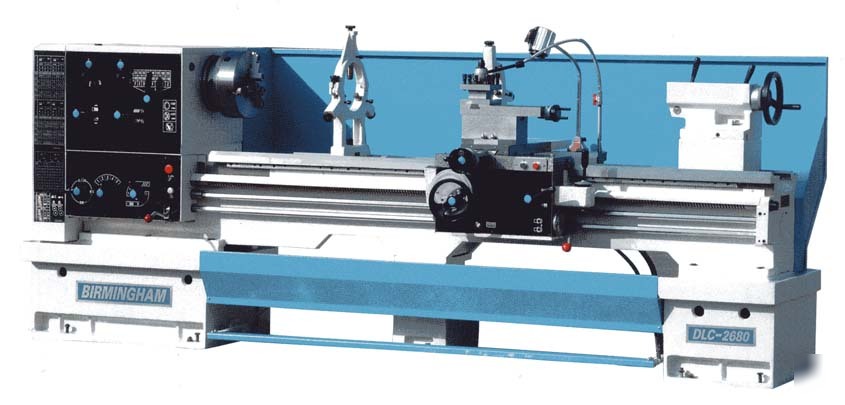

Note: the photo shows the 26" x 80" centers model
10 HP motor delivers power thru all spindle speeds
Spindle gears, shafts and bearings are lubricated by pumped bath of oil
Induction hardened and ground bedways
D1-8 Camlock spindle with 4-1/8" spindle bore
16 Spindle speeds, 26 - 1,700 RPM
Rapid power traverse to carriage and cross slide
Multiple disc clutch for efficient spindle starting and reversing
Swing over cross slide: 17-3/8"
Spindle nose type (Camlock): D1-8
Spindle speed range: 26 - 1,700 RPM
Spindle center to bedway: 12-3/4"
Threads per inch (No.) range (TPI): (42) 7/16 - 80
Metric threads (No.) range (mm): (37) 0.5 - 80
Module threads (No.) range (mm): (32) 0.25 - 40
Diametral threads (No.) range (DP): (42) 7/8 - 160
Long. feeds (No.) range (in/rev): (45) 0.0017 - 0.058
Cross feeds (No.) range (in/rev): (45) 0.0009 - 0.029
Leadscrew diameter (in): 1-9/16"
Main drive: 10 hp, 220/440V 3 ph
Maximum workpiece weight: 1,100 lbs.
12" 3 Jaw Chuck with reversible jaws
Steady rest capacity 6" - 12""
Follow rest capacity 3" - 8-1/2
Coolant System w/Full Length Splash Guard
Optional Equipment (call for pricing):
12" Steady rest with roller jaws
5C Hand lever type collet closer "JFK" USA
Machine Location: HARRISON, NJ
