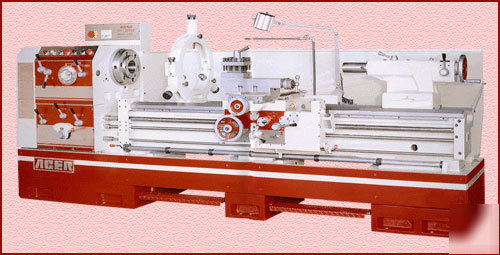

24" ENGINE LATHE, Acer 24160GH Dynamic Series
24" ENGINE LATHE, Acer 24160GH Dynamic Series
"NEW" ACER High Speed Precision Engine Lathe
MODEL: Dynamic Series - 24160G
Swing Over Gap (gap type only): 32-1/4"
Distance Between Centers: 160"
Spindle Nose: ASA 1-11 or D1-11
Type of Spindle Nose: 108 x 1:12
Spindle Speeds: 25-1200 RPM (12 steps)
Max Size Cutting Tool: 1" x 1"
Pitch of Leadscrew: 1-1/2" Diameter, 4 TPI
Metric Pitch Threads: 0.5 - 14mm/pitch (31 kinds)
Inch Pitch Threads: 2-56 TPI (45 kinds)
Module Pitch Threads (optional): 0.25-7 MP (23 kinds)
Diametral Pitch Threads (optional): 4-112 DP (43 kinds)
Range of Longitudinal Feeds: 0.0012" - 0.0287"/rev. 0.03 -.73mm/rev.
Range of Cross Feeds: 0.0004"-0.0118"/rev. 0.01 - .03mm/rev.
Rapid Traverse Motor: 1/2 hp (optional)
Packing Dimensions: 220" x 50" x 74"
Ampere meter for indicating power consumption.
Magnetic multiple-disc clutches in the headstock are used for
efficient starting and reversing the spindle.
12 speeds range from 25 to 1,200 RPM.
One of the outside gears on the gear box is designed with a safety
ring to protect it from damage.
Drip-proof 15 HP spindle motor.
Magnetic disc brake with foot pedal allows for rapid control of the
Hardened & ground bedways at Rockwell C 55.
Electro-trochoid pump forces lubrication oil to all running parts
Handwheel with direct inch/metric reading micro-collar.
Precision ground cross slideways.
Saddle-lock device for heavy cutting.
Rapid four directional travel.
Safety clutched and longitudinal lead screw.
4 TPI and oil bathed longintudinal lead screw.
Forward/stop/reverse lever with safety device.
Machine bed with FC-30 casting iron.
Chuck Guard with Emergency Stop
Optional Accessories (call for pricing):
Aloris or Dorial Tool Posts and Holders
5C Lever Operated Collet Closer
5C Handwheel Type Collet Closer
Newall or Sony 2 Axis Digital Readouts
Machine Location: HARRISON, NJ
