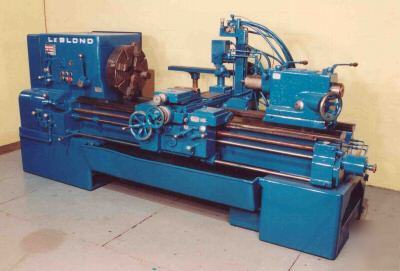

20" X 54" LEBLOND TRACER LATHE SERIAL ........................... 4NE-1634 MODEL ............................ 2013 HEAVY DUTY SWING OVER BED ................... 21" SWING OVER CROSS SLIDE ........... 12-1/8" DISTANCE BETWEEN CENTERS ......... 54" HOLE THRU SPINDLE ................ 2" SPINDLE NOSE ..................... L-1 SPINDLE SPEEDS ................... (27) 16 TO 2000 RPM FEEDS ............................ (109) .0011 TO .205 IPR THREADS .......................... (60) 2 TO 120 TPI CHUCK ............................ 18" 4-JAW CHUCK COOLANT .......................... YES SCAN-O-MATIC HYDRAULIC TRACER .... YES HARDENED REPLACEABLE WAYS ........ YES TREAD DIAL ....................... YES MICROMETER CARRIAGE STOP ......... YES CHIP PAN ......................... YES HYDRAULIC UNIT ................... 1-1/2 HORSEPOWER SPINDLE MOTOR .................... 20 HORSEPOWER CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! |
