Subject: 20 hp philadelphia mixer 3287

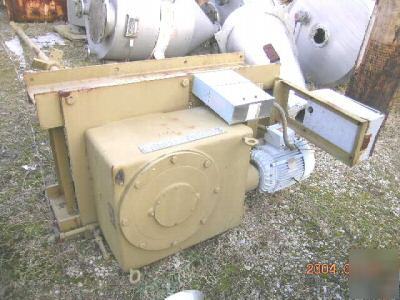

ITEM 3287: 20 HP PHILADELPHIA MIXER. MODEL 3809S-PTO: SN OF MIXER IS 82DHK0587. ORDER # 887583-1. INPUT RPM OF 1800; RATIO OF 39:1; OUTPUT RPM OF 45. FLANGED CARBON STEEL SHAFT, 4 DIAMETER X 17’ LONG. TWO HUBS BUT NO BLADES. BRIDGE MOUNT DESIGN. BRIDGE IS TWO 16 I-BEAMS X 63 WIDE. OUTPUT SPEED OF REDUCER IS 45 RPM. MOTOR MAY NEED TO BE REPLACED. CURRENTLY IT IS A 20 HP, 460 VOLT 1765 RPM DIRECTLY COUPLED TO THE INPUT SHAFT OF THE MIXER GEAR REDUCER.
