Subject: #20 gleason parallel axis rolling tester #24602

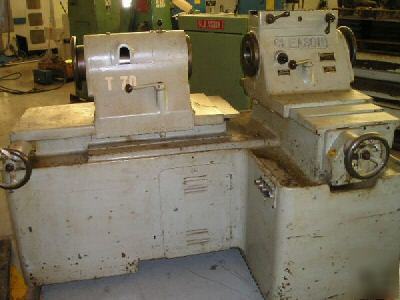

#20 GLEASON PARALLEL AXIS ROLLING TESTER
New 1955, Serial No. 30331, Model 20
7.5 HP, 220 Volt, 3-Phase 60 Cycle, 1750/1160/960/580
RPM Main Drive Motor - 4-Speed Drum Switch
Guards, Covers - Operator's Manual, Wiring Diagram
Max./Min. Dist(s) Bet. Noses Of Spdls On Brake
& Drive Hds:........................... 26"/4"
Max./Min. Dist(s) Bet. Noses Of Spdls On Brake
& Drive Hds: (Metric).................. (660.4/101.6mm)
Max./Min. Distance(s) From Center Of Brake
Head Spdl To Ctr Of Drive Head Spdl.... 17"/1.5"
Max./Min. Dist(s) From Ctr Of Brake HeaD Spdl To
Ctr Of Drive Head Spdl (Metric)........ (431.8/38.1mm)
w/Way Guards On........................ 22"/(558.8mm)
w/Way Guards Removed................... 24"/(610mm)
w/Lapping Guards....................... 20.25"/(514.4mm)
Dia Of Spdl Taper Hole (Large End)..... 3.908"/(99.28mm)
Spindle Taper Per Foot................. .609"/(15.478mm)
Diameter Of Drive Pulley............... 8"/(203.2mm)
Spd Of Drive Pulley w/Multi Speed Motor 400-1200 RPM
Floor Space............................ 62"x 99"
Floor Space (Metric)................... (1575 x 2515mm)
Weight, Approximately.................. 4,500 LBS (2045 KGS)
NOTES: Suitable for testing the running qualities
of spur, helical, herringbone, internal spurs,
cluster gears & intergral shank gears up to 24"
PRICE: F.O.B. OUR WAREHOUSE........... $6,950.00
All machines/equipment subject to prior sale.
