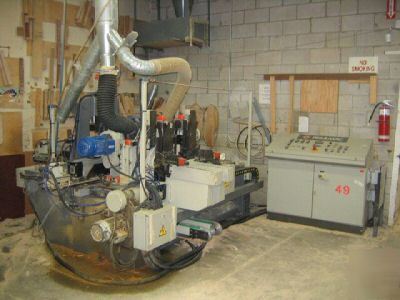

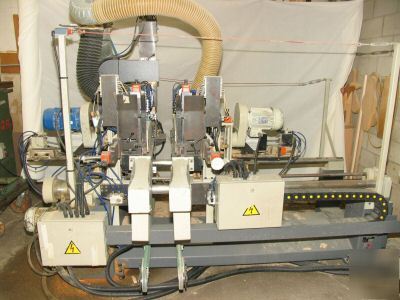

MACHINE: 1997 FRIULMAC- FN/5 SPC- DOUBLE END TENONER CONDITION: RECENTLY TAKEN OUT OF OPERATION LOCATION: UWMO WAREHOUSE (MARKHAM, ONTARIO) SPECIFICATIONS: Capacity working measures min. length 220mm, max. length 1300mm, min. width 20mm, max. width 100mm, min. thickness 10mm, max. thickness 40mm, 1st. station trim saw unit saw-blades diameter 125mm min., 180mm max., arbor hole 30mm, blade speed 7600rpm, standard assembled saw-blade diameter 150mm, z=48 (z=no. of teeth), kerf=3.2mm, 2nd station endfaces boring unit max. boring stroke 80mm with boring head style as per drawing no. 20.000.6952, 2 chucks, CD 28,575mm (1 - 1/8"), spindle speed 2800 rpm, chuck speed 2800 rpm, 3rd station ends, vertical boring, boring stroke 80mm as per boring head drawing 20.000.6953 2 chucks CD 28,575mm (1 - 1/8"), 4th station ends frontal boring, boring stroke 200mm as per boring head drawing 20.000.6301, 2 chucks CD 32mm overall machine dimensions, length 3500mm, width 2800mm & height 2000mm weight 1600kg. control board dimensions length 1200mm, width 500mm & height 1100mm weight 150kg. -With Offices In Both Canada & United States - |
