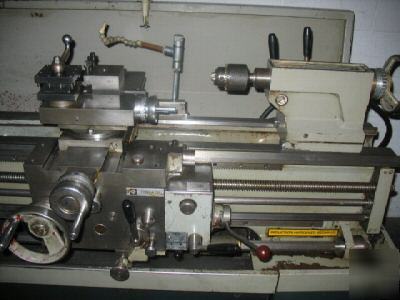

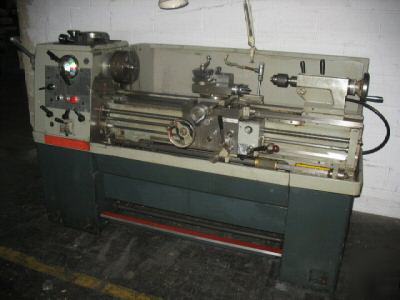

13" x 40" CLAUSING COLCHESTER ENGINE LATHE MODEL: Master 2500 , S/N 5/0014/06555 SWING OVER BEDWAYS ................... 13" SWING OVER CROSS SLIDE ............... 8-1/4" HOLE THRU SPINDLE .................... 1-21/32" DISTANCE BETWEEN CENTERS ............. 40" SPINDLE NOSE ......................... D1-4" CAMLOCK SPINDLE SPEED RANGE (16) ............. 30 - 2500 RPM ENGLISH THREADING RANGE (45) ......... 2 - 72 TPI METRIC THREADING RANGE (39) .......... .2 - 14 mm LONGITUDINAL FEED RANGE .............. .0015" - .040" IPR CROSS FEED RANGE ..................... .00075" - .020" IPR TAILSTOCK SPINDLE TAPER .............. #4MT TAILSTOCK SPINDLE TRAVEL ............. 6-1/8" APPROX FLOOR SPACE ................... 78"L x 32"W x 49"H APPROX WEIGHT ........................ 2,750 LBS COOLANT SYSTEM WITH REMOVEABLE CHIP PAN MACHINE IS WIRED FOR 220 VOLT OPERATION Inspect Under Power in Our Raritan NJ Warehouse Questions call dave @ |
