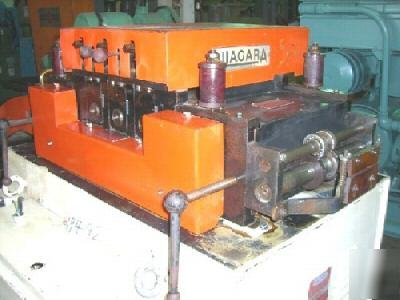

12" x 1496", NIAGARA, No. 350-7-12,2-sets power pinch rolls,7 straigh Rolls Our stock number: 19492 MODEL NUMBER...................350-7-12 SERIAL MUMBER..................F-2024 YEAR:1984 Right to left or left to right line direction This machine will feed in either direction Maximum Width Capacity.........12" Maximum Thickness Capacity......1496 Number of Straighening Rolls.......7 Diameter of Straightening Rolls......3 1/4" Two sets of pinch rolls, 3.5" Diameter Located On Entry and Exit Sides. Both Sets Are Power Driven. Pinch Rolls Manually Operated By Lever For Threading Coil Stock And Equipped With Spring Hold Adjustable Collar Type Stock Guides On The Enrty Side For Guiding Coil Stock Into The Straightening Rolls. Opcon Electric Eye Coil Loop Control Electrical Controls Including Jog Forward And Reverse, Run, SPECIFICATIONS SUBJECT TO VERIFICATION All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. |
