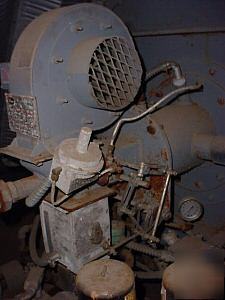

G-2019 1M BTU/HR HOT OIL HEATER Model/serial no. HT LIQUID PHASE HEATER, CAT.#OL.FM 100-2HHC.FD150, 1983 Manufacturer ECLIPSE LOOKOUT Dimensions O/A 11' 6" X 5' X 5' 8" Construction/config CS HORIZONTAL Code/N.B.# ASME 46725 PSI:Jkt:in MAX.TEMP= 750 F OUTPUT= 1,000,000 BTU/HR Inlets/outlets 14" TOP INLET, 2" TOP INLET & TOP OUTLET Motor BURNER= .5HP, 3450 RPM, PUMP= .5HP, 1725 RPM, COMP.= 1.5HP, 1725 RPM Drive INPUT= 1,265,185 BTU/HR, SERIES FDS BURNER Electrical data 208-230/460V, 3PH, 60HZ General data SKID MOUNTED, FUEL= #2 OIL, TRANS. MEDIA= DOWTHERM A, GOOD CONDITION! |
