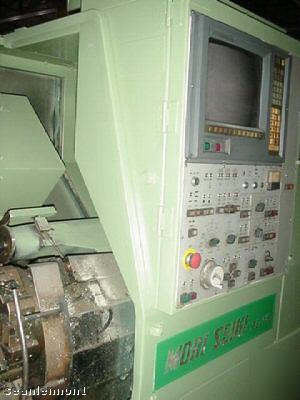

Mori Seiki 4-Axis ZL-l5 CNC Turning Center S/N l45 New: l989-90 Specifications: Swing over bed l8.9” Swing over cross slide 14.6” Between centers 23.4” Maximum machining diameter 6.3” Standard machining diameter 6.3” Maximum machining length 20.7” Bar capacity l.6” “X” Axis travel Upper 5.3” Lower 3.9” “Z” Axis travel Upper 22.0” Lower 22.0” Spindle speeds 50-5000 RPM No. of tool positions: Upper: l2 Lower: 8 Main motor l0/l5 HP Equipped with Fanuc 11TF Control Chip Conveyor Tailstock Manuals Use the FREE Counters 1 million sellers do - Andale! |
