Subject: Kla-tencor 259 reticle inspection
Config. for RIA II,IAS COMPUTER
Barrier bagged, warehoused at warehouses of SDI, Avezzano, near Rome, Italy.

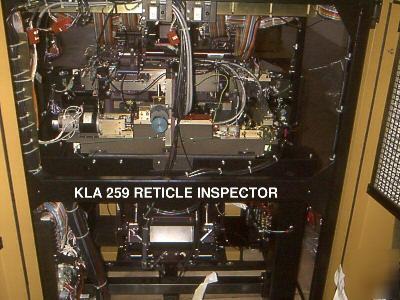

The system is a 2-piece inspection station, consisting of the main unit, and the instrumentation unit.
The instrumentation unit includes an IAS (Image Acquisition System), which is a PC based system that allows electronic highlighting of the defects captured on a second monitor installed in the unit.
Interface board of PC is Accurlogic Floppy Drive SIDE3 controller
Autofocus laser model Uniphase 1103P-0187 dated Jan 1995
The equipment is available for sale with the following accessories:-
Mask Holder 740-100360-00 250 mil 6.0 X 0.250
GW Holder 740-100059-00 250 150mm P1
Mask Holder 740-210171-00 250 mil 5.0 X 0.090
Mask Holder 740-210171-00C 250 mil 5.0 X 0.090 LT
Verimask 845 dated 26-sep-91 Dupont master s/n 1063
The system contains the following boards:-
Slot 3 710-023602-00 B display system trap, RF
Slot 4 710-023256-00 C2 p3 data input
Slot 5 710-023141-00 assy, formatter p3
Slot 8 710-023236-00 B1 scan delay fir
Slot 13 710-023596-00 C2 AED P3 RF
Slot 14 710-023596-00 C2 AED P3 RF
Slot 15 710-023596-00 C2 AED P3 RF
Slot 16 710-035524-00 A AP 1 210 series
Slot 17 710-039524-01 C AP 2 210 series
Slot 21 710-037887-01 B BMMC M2A with RIA signal mod.
Slot 23 710-029767-00 D UPLL RF
Slot 24 710-036420-00 XB Def. Con . 4-IAS compatible-newest version
Slot 25 710-036380-00 C IAS parameter 2
Slot 26 710-023279-00 H2 4/16 level dump
Slot 30 710-040042-00 XB e-series detector, threshold 2x2 259 M2A
Slot 31 710-023455-00 XC e-series detector, compare, 21xe
Slot 32 710-029694-00 XF e-series detector,data 259 ROQ
Slot 33 710-023455-00 XC e-series detector, compare, 21xe
Slot 35 710-023589-00 B2 servo 1 III
Slot 36 710-029421-00 C2 servo 2 III
Slot 37 710-039924-00 A1 servo 3 IV
Slot 38 710-028287-01 G1 servo 4 II
Slot 39 710-023599-01 B1 Computer IF (RF)
Slot 42 710-037718-00 C SBC 3.5 inch floppy
Slot 43 710-023273-00 C 512 K ram, 210 series
Slot 44 710-037717-00 A FDD controller, 3.5 inch
710-029924-00 F Preprocessor 1 (RF)
710-029927-00 E Preprocessor 2 (RF)
710-036106-00 D IAS control 3- e-series only
710-029978-00 XE CF Control M2A only
710-029903-00 RH channel digitizer M2A
710-037699-00 XA1 gain/offset testpoint board
Price for sale including installation on a "best effort" basis and including installation to specification can be quoted on request.
Conversion to 0.36 pixel size is also possible.
