Kiwa excel 810 vmc cnc vertical machining center

UpUp


Subject: Kiwa excel 810 vmc cnc vertical machining center

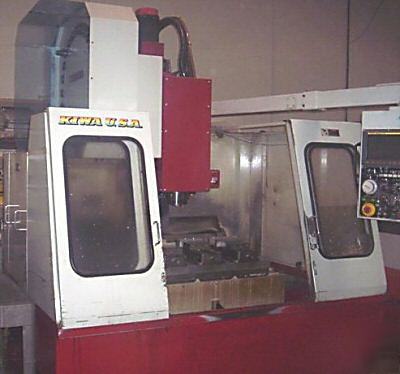

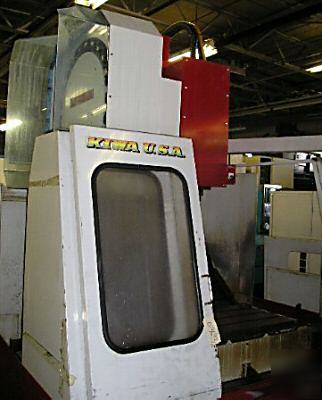

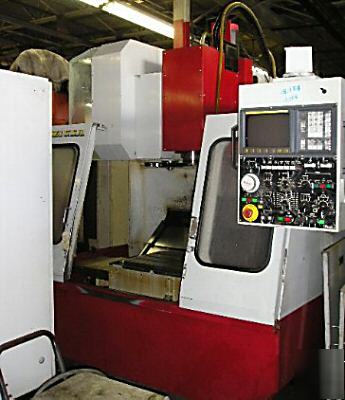

YOU ARE LOOKING AT ONE (1) KIWA EXCEL STALLION 810 VERTICAL MACHINING CENTER THAT IS IN GOOD CONDITION. THIS MACHINE FEATURES THE FANUC OM CNC CONTROL THAT IS STILL SOLD AND SERVICED BY FANUC TODAY. THE MACHINE FEATURES RIGID TAPPING, HEAVY DUTY BOX WAY CONSTRUCTION, AND A HIGHLY REQUESTED SIDE MOUNTED TOOL CHANGER (KEEPS CHIPS AWAY FROM TOOLING BETTER). THIS MACHINE IS BEING SOLD "AS-IS" WITH NO WARRANTY OF ANY KIND ALTHOUGH IT HAS BEEN TESTED AND ALL FUNCTIONS ON THE MACHINE ARE IN GOOD WORKING ORDER. YOU MAY VIEW THE MACHINE UNDER POWER IN OUR LIVONIA, MI FACILITY. TO MAKE AN APPOINTMENT TO SEE THE MACHINE UNDER POWER PLEASE CALL TED BARRIE AT .
WORKING AREA ON TABLE:............................................... 34.5" X 18.9"
TRAVEL:........................................................................... X 31.9"
.........................................................................................Y 20.1
..........................................................................................Z 22.0"
DISTANCE FROM TABLE TOP SURFACE AND SPINDLE NOSE: MAX 27.6", MIN 5.5"
DISTANCE BETWEEN COLUMN AND SPINDLE CENTER:.... 19.3"
MAXIMUM LOAD ON TABLE:.............................................. 880 LBS
SPINDLE TAPER:............................................................... #40
SPINDLE SPEED RANGE:................................................. 100 4000 RPM
SPINDLE MOTOR:............................................................. AC 9KW/12HP(30 MIN)
REQUIRED FLOOR SPACE (L X W):.................................. 86.6" X 137.8"
OVERALL MACHINE HEIGHT:............................................ 102.4"
NET WEIGHT:.................................................................. 11,905LBS
NUMBER OF TOOLS:....................................................... 25
MAX. TOOL DIAMETER:................... 3.7" (5.9" WHEN ON TOOLS ON BOTH SIDES)
MAXIMUM TOOL LENGTH:............................................... 11.8"
MAXIMUM TOOL WEIGHT:............................................... 13.2
RAPID TRAVERSE RATE (Z AXIS):................................... 512 IPM
(X & Y AXIS): 630 IPM
CUTTING FEEDRATE:..................................................... 157 IPM
PLEASE VISIT WWW.ALLIEDMACHINERY.COM TO SEE OUR ENTIRE INVENTORY
THIS MACHINE IS BEING SOLD "AS-IS" SO THERE IS NO WARRANTY OF ANY KIND. IT HAS BEEN TESTED UNDER POWER AND IT RUNS GREAT. WE HAVE THE OPERATIONS MANUAL THAT WILL BE SUPPLIED TO YOU.
