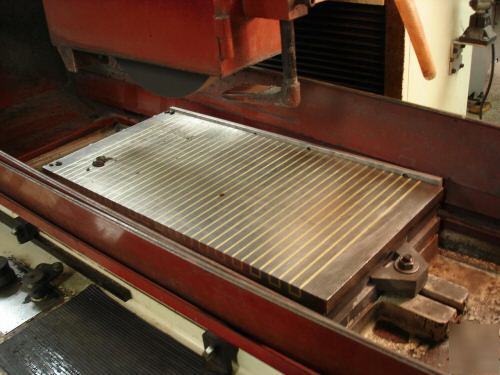

USED KENT USA MODEL SGS-1224AHD FULLY AUTOMATIC HYDRAULIC SURFACE GRINDER NEW 1999. SPECIFICATIONS: TABLE WORKING SURFACE - 10-1/4” X 29-1/2” MAX TABLE TRAVEL -13-1/2” X 24-1/2” MAX DISTANCE SPINDLE TO TABLE - 23-1/2” GRINDING WHEEL -12” DIA X 1” W TABLE SPEEDS - 16 TO 82 FPM AUTOMATIC DOWNFEED INCREMENTS - 0 – 0.001” (10 STEPS 0.0001” EA) AUTOMATIC CROSSFEED INCREMENTS - 0 – 5/8” RAPID CROSSFEED - 35 IPM SPINDLE SPEED - 1750 RPM SPINDLE MOTOR - 5 HP MAX TABLE LOAD PLUS CHUCK - 660 LBS. WEIGHT, APPROX - 4900 LBS. EQUIPPED WITH: 3-AXIS OPERATION 1224 ELECTROMAGNETIC CHUCK RAPID ELEVATION TO SPINDLE OVERHEAD WHEEL DRESSER COMBINATION COOLANT SYSTEM / DUST COLLECTOR EXTERNAL HYDRAULIC TANK WORK LIGHT
|
