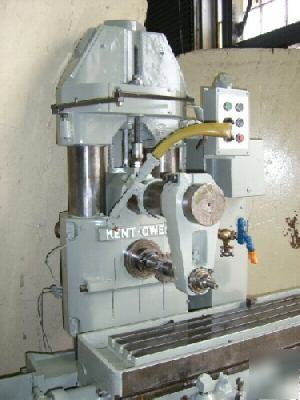

K&o 2-20 rise&fall horizontal production mill (20059)

UpUp


Subject: K&o 2-20 rise&fall horizontal production mill (20059)
No. 2-20, Kent-Owens, R&F, 12”x42” Tbl., 20” Tbl Tvl, 5 HP, 1975, Clean
Table Working Surface: 42”x12”
Feed Range, Infinitely Adjustable: 1” to 80” Per. Min.
Rapid Traverse, Head and Table in Both Directions: 330” Per Min.
Table to Center of Spindle: 13” Max., 4” Min.
Center Line of Table to Face of Sp0indle Nose: 7-1/2” Max., 4-1/2” Min.
Spindle Nose and Taper: No. 40
Distance From Underside of Overarm to Spindle Center: 6-1/4”
Spinle Speeds: (12) 64 to 860 RPM (With proper change gears)
PRELIMINARY SUBJECT TO VERIFIACTION
