Subject: Fanuc system 6M-model b accu-router (jf)
PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION:
TABLE SIZE ..................................... 31.5" X 79"
DISTANCE SPINDEL TO TABLE MAXIMUM .............. 40"
Z-AXIS TRAVEL OF ROUTER HEAD ................... 12"
DISTANCE BETWEEN COLUMNS ....................... 51"
SPINDLE MOTOR .................................. 6-1/2 H.P.
SPINDLE SPEED (VARIABLE) ....................... 17,650 R.P.M.
DIMENSIONS (APPROXIMATE) L-R x F-B x H ......... 134"X 83"X 117"H
FANUC CONTROL " " " " " ......... 28" X 30"X 60"H

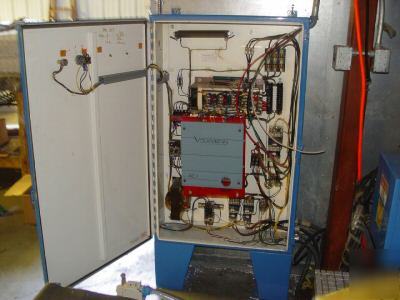

ELEC. CABINET " " " " " ......... 10" X 39"X 61"H
WEIGHT (APPROXIMATE) ........................... 7,500 LBS.
CONTROL:GENERAL NUMERIC FANUC 6M

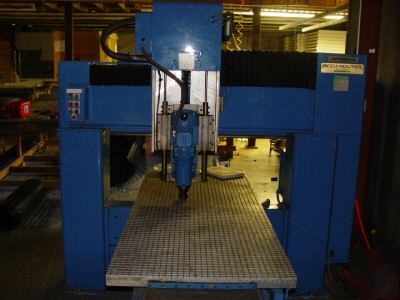

ROUTER HEAD ARRANGED TO SUPPORT TWO SPINDELS
ERICSON COLLET CHUCK ON ROUTER SPINDLE
