Colonial 10 ton single ram vertical broach

UpUp


Subject: Colonial 10 ton single ram vertical broach
(1) USED - 10 TON X 36" STROKE COLONIAL PULL DOWN VERTICAL BROACH*
Serial No. 5-2961-066 New - 1966
Normal Capacity 10 Ton
Peak Capacity 28,300 Lbs.
Stroke 36"
Ram Speed - Down 30 F.P.M.
- Return 60 F.P.M.
Main Cylinder Diameter 6"
Hydraulic Pump Motor 20 HP
Hydraulic Oil Tank (Integral) 75 Gallon
Coolant Tank (Integral) 40 Gallon
Approximate Dimensions 50" x 96" x 135"
Approximate Weight 13,500 Lbs.
Single Ram with Two Pull Stations
Pick Omatic Systems Model 2707 Pick & Place Unit
Tooled for Splined Timing Gears
"Swing Away" Hinged System, it can be bypassed for manual load & unload
Electric System Bypass Pick-Place
1994 Rebuilt & Retrofit Consisting of but not Limited to:
Allen Bradley SLC 500 and Panelview Touch Screen Controller
Full Following Retriever Slide

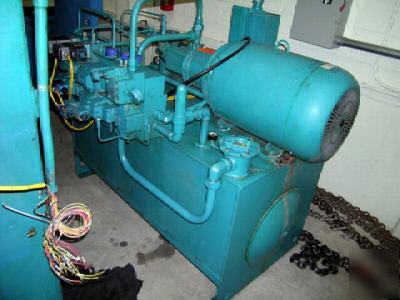

New Vickers Variable Flow Control, New Vickers Directional Valves
New 120 Gallong External Hydraulic Reservoir
*Preliminary Specifications Subject to Verification.
