Subject: Cincinnati no. 420-16 vertical milling machine (14419)

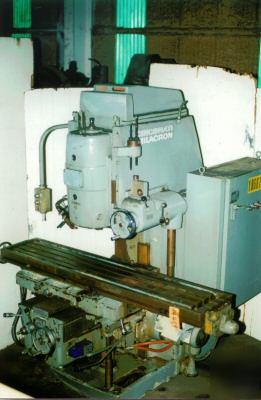

Cincinnati Vertical Milling Machine
No. 420-16, 16”x80” Tbl., 42” Long, 16-1600 RPM, 20HP, 1978
Working Surface of Table: 79 ¾”x 16 ¼”
T-Slots, Number and Size: (3) 13/16”
Distance, End of Spindle to Top
Throat Distance, Center of Spindle
Spindle Speeds: (24) 16 to 1600 RPM
Range, Table and Cross: 3/8 to 90 in./min.
Rapid Traverse, Longitudinal & Cross: 150 in./min.
Rapid Traverse, Vert. of Knee & Head: 75 in./min.
20 HP Spindle Motor, 1740 RPM 230/460/60/3
Approximate Weight: 12,500 Lbs.
SPECIFICATIONS SUPBJECT TO VERIFICATION
