Subject: Charmilles D10 bench ram type edm machine
(1) USED - -CHARMILLES TYPE D10 BENCH TYPE, CONVENTIONAL RAM TYPE EDM MACHINE WITH ISOPULSE TYPE 25 POWER SUPPLY GENERATOR*

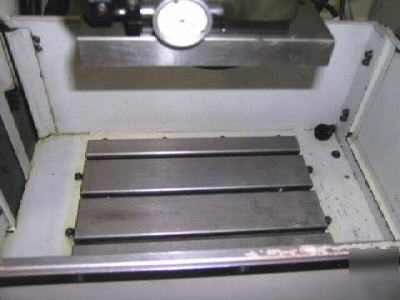

Table Dimensions 13.75" W x 8" D
Tank Dimensions 21" W x 14" D x 8" H
Table Longitudinal Travel - X-Axis 7.87"
Table Cross Travel - Y-Axis 4.75"
Quill Vertical Travel - Z-Axis 3.87"
Backslide Travel 7"
Platen to Table-Top - Maximum 14.75"
Electrical System 220/3/60
Approximate Weight 700 Lbs.
Charmilles Isopulse P25 Generator (Power Supply), 25 Amps
Charmilles-Erowa Isocut Orbitor with Charmilles Tapered Chuck
*Preliminary Specifications Subject to Verification.
