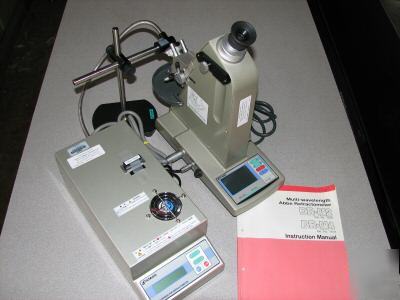

Multi-wavelength Abbe Refractometer Includes DR-M2 main unit, Light Source unit, light guide and stand, manual, 1550 nm interference filter. Measures Refractive Index from 1.3000 to 1.7100 with accuracy ± 0.0002. ATAGO's Multi-Wavelength Abbe Refractometers have the ability to measure liquids or solids at different wavelengths using interchangeable filters. Measurements are displayed digitally for easy reading. Refractive index or Abbe number ( ?d or ?e ) can be measured at different wavelengths ranging from 450 to 1100 nm (681 nm to 1550 nm with IR viewer not included). Measurement temperature range 5C to 50C. The DR-M2 digitally displays measurement result of refractive index or Abbe number on the LCD. Measurement is achieved by matching the boundary line with the intersection point of the cross hairs. Retail price $17,500; see http://www.nationalmicroscope.com/microscopecatalog/index.php/cPath/29_46?osCsid=6d8aeebc06fdfded066771362101fa14. For specifications, see http://www.atago.net/english/products_multi.php#01; for catalog see http://www.atago.net/english/images/catalog/NAR.pdf. This item is slightly used, in perfect working condition and good physical shape. |
