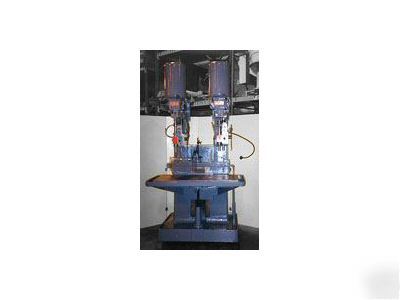

Subject: Allen 2 spindle drill press
Capacity 12 in. Throat
Drilling Capacity 1 in.
Spindle Diameter at Drive 1 in.
Spindle Nose Diameter 1-3/8 in.
Sliding Head Traverse 9 in.
Spindle Traverse in Sliding Head 5 in.
Table Movement on Column 16 in.
Center to Center of Spindles 25 in.
Spindle to Table 28 in.
Spindle Speeds (w/4:1 back gears) 150-1800 RPM
Standard Feeds per rev. (6) .003-.040
Power 2 HP/460 volts
Working Surface of Table 46 x 21 in.
Net Weight 3,270 lbs.
Approx. Dimensions (WxDxH) 53 x 46 x 100 in.
JIC Control Panel with Circuit Breaker
Extended Sliding Head Traverse (Option)
