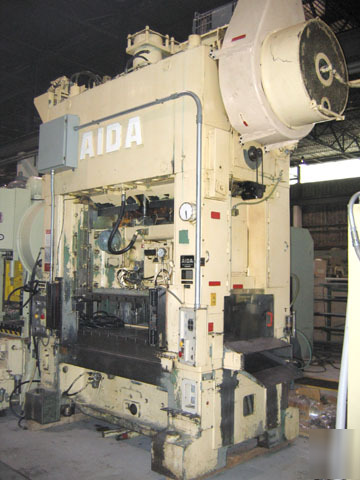

AIDA MODEL PDA-20H HIGH-SPEED, DOUBLE CRANK, STRAIGHT SIDE PRESS* Capacity: 220 Ton Stroke: 5.9" Shut Height Bed to Slide (SDAU): 21.25" Slide Adjustment (Motorized): 3.94" Bed Area: 59.1" L-R x 43.3" F-B Slide Face Area: 59.1" L-R x 35.3" F-B (T-Slotted) Distance Bed to Floor: 32.5" Speed (Variable): 30 - 150 SPM Air Clutch and Brake with Selector Controls Welded Steel Construction (with Tie Rods) EQUIPPED WITH: Link-5000 Control w/Tonnage Monitor & Die Protection Pneumatic Die Cushion in Bed Hydraulic Overload Protection Air Counterbalance Cylinder to Slide T-Slotted Bolster Plate (5.5" Thick) Automatic Recirculating Lubrication System 40 HP Eddy Current Main Drive Motor Electrical Controls Operator Control Console; Dual Push Button Operation Approximate Overall Dimensions: Approximate Weight: 80,000 Lbs. Serial Number: 12900-0221 (New 1982) P2 F.O.B. Elk Grove, IL - $145,000.00 * PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (outside US & Canada) Email: |
