Subject: Acer - vertical turret mill - model # 3VK e-mill

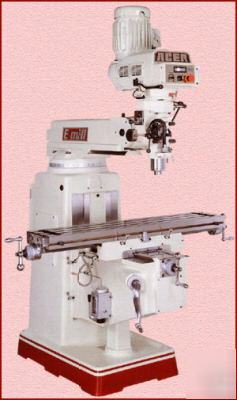

Acer - Vertical Turret Mill - Model # 3VK E-mill Series
* 3 HP Spindle Motor: U.S. made “Baldor Super E”
* Inverter Control Variable Speeds: ToshibaU.S. made Allen-Bradley Electrical Components
* Precision Grinding Head Housing; Electric Brake
* Precision Spindle with ABEC-7 Bearing
* Chrome Plated & Precision Ground Spindle Quill
* Precision X, Y Axes & Knee by Hardened & Ground Dovetail Ways to HRC 52°
* Rigid Meehanite GA-50 Casting ; One Shot Lubricator
Acer 3VK E-Mill Series Vertical Turret Knee Mill-all dovetail ways 10" x 50" table-Can run Three phase or Single phase
“Newall” DRO (C70, 2-axis, 16”x36” travel, .0002” Res. Scale)
“Sony” or Acu-Rite DRO (Millman, 2-axis, 16”x36” travel, .0002” Res. Scale)installed
“A-Class” Power Feed Long/Cross/Knee
“Servo” Longitudinal Feed (M-9108-140 / M-9108-150)
“Servo” Cross Feed (M-9508-140 / M-9508-150)
“Servo” Knee Feed: (M-9821-140 / M-9811T - 200)
Cross Feed $200 / Knee Feed $300
12” Rotary Table (Vertical & Horizontal)
Coolant System (Not Installed)
Chip Pan (49” x 30” x 7.5”)
R-8 Collet ( 1/8” – 3/4” ; 11pcs/set)
Maxi-Torque Auto-Air Power Draw Bar add $200 installed;price(Not Installed)
“Kurt” Mechanical Air Power Draw Bar add $200 installed; price(Not Installed)
“Ericson” Quick Change Spindle #30 Taper (Installed Upgrade)
Riser Block (4”/6”/8”) Install Fee$200
440-480 Volt Frequency Inverter
Special Package includes E-mill 3VK with "Newall DRO"(2-Axis, 16x36" travel, 0.0002" scale) and "A Class" Longitudinal power feed & pre-installation at ACER Warehouse.
