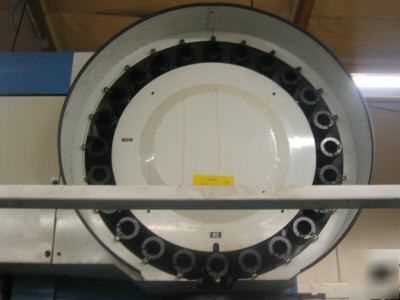

YCI SUPERMAX MAX-8 REBEL 65”x 30” VERTICAL MACHINING CENTER Build Date: 1996 Installed: JAN 2001 · TABLE WORKING SURFACE 66.9” x 29.9” · TABLE LOAD CAPACITY 4,400 LBS. · LONGITUDINAL TRAVEL (X-AXIS) 65” · CROSS TRAVEL (Y-AXIS) 30” · VERTICAL TRAVEL (Z-AXIS) 30” · RAPID TRAVERSE RATE 0 – 590 IPM · TOOL STORAGE CAPACITY 24 SIDE MOUNT ATC · SPINDLE HORSEPOWER 20 HP ( Fanuc AC Digital ) · SPINDLE SPEEDS RANGE 0 – 8000 Direct Drive · FLOOR SPACE REQUIREMENT 11’6” x 12’5” x 11’7” · APPROXIMATE WEIGHT - NET 28,000 LBS. · RIGID TAPPING & HELICAL INTERPOLATION · FANUC OM CONTROL w/ RS-232 INTERFACE · CHIP AUGER & FULL ENCLOSURE · DUAL COOLANT TANK – 80 GALLONS · AC DIGITAL SERVO & SPINDLE DRIVES · ATC IS RANDOM ACCESS / BI DIRECTIONAL FOB: FREMONT, CA ( loading included) WARRANTY: 30 DAY MDNA RETURN PRIVILEGE NOTE: The factory build date is 1996. First owner bought it in 12/00 and installed it in 1/01. Machine only has 5 years of use and 6000 Hours of cut time. CALL or Email today with any questions. Machine can be demonstrated under power. Ask for Bob or Rob Kroha. Office # |
