Subject: Wiedemann vectrum 5000 cnc turret punch w/plasma

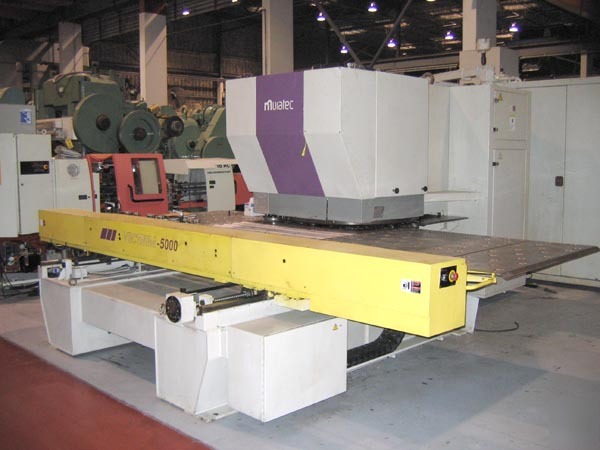

WIEDEMANN-MURATA MODEL VECTRUM-5000 CNC TURRET PUNCH W/PLASMA*
Capacity: 50 Ton
Stroke: 1.355"
Maximum Sheet Thickness: .375"
Maximum Sheet Size: 60" x 72" (w/o Reposition)
60" x 144" (w/Reposition)
Maximum Traverse: 62" x 74"
Throat Depth: 62"
Maximum Sheet Weight: 440 Lbs.
Turret Configuration: 52 Stations - (20) Up To 1"Dia.(Rounds Only)
(18) Up To 1" Diameter; (6) 1" To 1.5" Diameter; (2) 1.5" to 2"
Diameter; (2) 2" to 3" Diameter; (2) 3" to 6" Diameter;
(2) Auto-Index (up to 2" Diameter)
Turret Speed: 30 RPM (Bi-Directional)
Maximum Hit Rate: 215 HPM (1" Increment Movement)
335 SPM (Nibbling)
EQUIPPED WITH:
Fanuc 16P CNC Control
Thermal Dynamic 150 Amp Plasma Unit
Digital Hydraulic Servo Controlled Ram
Hydraulic Work Clamping; Automatic Repositioning
Slug Conveyor; Chiller Unit; Dust Collector
Hydraulic Power Unit w/110 Gal. Oil Reservoir
50 HP AC Main Pump Motor
Approximate Overall Dimensions: 180" L-R x 115" F-B x 108" H
Approximate Weight: 45,000 Lbs.(HEAD: 128"X 65"X 108"H)
(CONV: 160"X 30"X 62"H)
Serial Number: 641 (New 1995)
P2 F.O.B. Elk Grove, IL - $169,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
Email us at
Call our Sales Staff at
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
