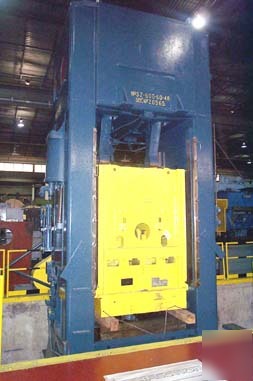

VERSON MODEL S2-600-60-48 STRAIGHT-SIDE, TWO POINT, DOUBLE GEARED,
ECCENTRIC DESIGN, SINGLE ACTION, SINGLE DRIVE, MECHANICAL PRESS
Capacity: 600 Ton (1/2" Off Bottom)
Shut Height Bed to Slide (SDAU): 28"
Slide Adjustment (Motorized): 10"
Bed & Slide Face Area: 60" L-R x 48" F-B
Bed Openings: 47" L-R x 27" F-B
Window Openings in Uprights: 22" Wide, 24" High
Speed: 22 SPM
Distance Bed to Floor: 42-1/4"
Depth of Pit Required: 19"
Steel Tie Rod Construction
Air Clutch and Brake with Selector Controls
8-Point Adjustable Gibs with Renewable Brass Liners
Arranged for (2) Crossbar Knockouts in Slide
Verson Pneumatic Bed Die Cushion
Air Counterbalance Cylinders to Slide
75 HP Main Drive Motor; AC Slide Adjustment Motor
Complete Electrical Controls with Brake Monitor
Verson High Pressure Automatic Recirculating Lubrication System
Bolster Plate (9" Thick); Flywheel Air Brake; Surge Tanks
Dual Palm Button Operation; Mechanical Stroke Position Indicator
Approximate Overall Dimensions: 136" L-R x 150" F-B x 278" H
Approximate Weight: 148,700 Lbs.(PIT REQUIRED: 19")
Serial Number: 20565 (New 1968)
P2 "Where Is" Elk Grove, IL - $ 12,000.00
