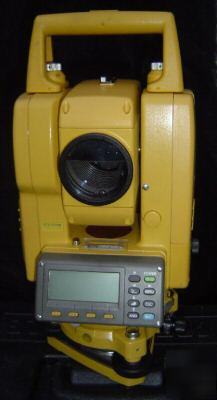

Subject: Topcon gts-239W GTS239W gts 239W total station
World's first wireless total station (no cable between instrument and data collector)
Expanded keyboard for increased functionality
The GTS-230W Series is loaded with standard features including a long life 10 hour NiMH battery, a "Point Guide Feature" to allow fast alignment in staking tasks, and a laser plummet to help make setup fast and easy. Even wireless operation is standard with the GTS-230W Series, so you don't have to worry about messy cables slowing you down!
On board data collection, handy application programs, and increased distance range and EDM accuracy complete this package that’s been designed to speed up your work while insuring accuracy and ease of use.
Objective Lens Diameter 45mm(EDM:50mm)
Min. Focus Distance 1.3 meters
Non-Prism Mode 5 - 820 ft, 1.5 - 250 meters
Prism Mode ±(3 2mm+2ppmxD*) m.s.e. fine, N/A
Non-Prism Mode ±(5mm) m.s.e. fine(3-25m), ±(10mm) m.s.e. fine(25m or more), N/A
Minimum reading 1mm(0.005ft.)/0.2mm(0.001ft.) fine, 10mm(0.02ft.)/1mm(0.005ft.) coarse, 10mm(0.02ft.) tracking
measurement time 2.8 sec/ 1.2 sec.(Initial 4.0 sec.) fine, 0.7 sec.(Initial 3.0 sec.) coarse, 0.4 sec.(Initial 3.0 sec.) 0 tracking
Detection 2 sides horizontal, 1 side vertical
Minimum reading 1”/5” arc sec, 0.2/1 mgon
Diameter of Circle 71 Millimeters
Correction Unit 1" arc sec, 0.1 mgon
Interface RS-232C(6 pin) Serial I/F Port 1, N/A, N/A, N/A
Circular level sensitivity 10’ /2mm
Plate level sensitivity 30" /2mm
Optical Plummet 3x Magnification, 0.5m to infinity Focusing Range, Erect Image, 5° Field of
Laser Plummet LD (Visible Laser) light source, 633nm wave length, 1mW Maximum output, C lass 2(IE 0 Publication) / Class II (FDA/BHR 21 CFR 1040) class
Laser Pointer N/A, N/A, N/A, N/A, provided point guide
(HxWxL) 13.2 (H) x 7.2 (W) x 6.9 (L) inches, 336(H) x 184(W) x 174(L) Mlm
Instrument Weight(with battery) 10.8 pounds, 5.2 kg
Operating Temperature -20° to +50° Celsius, -4° to +122° Fahrenheit
CONVENTIONAL / WIRELESS GTS-230W Series is a cost effective, simple and durable instrument with Bluetooth® Wireless capability.
