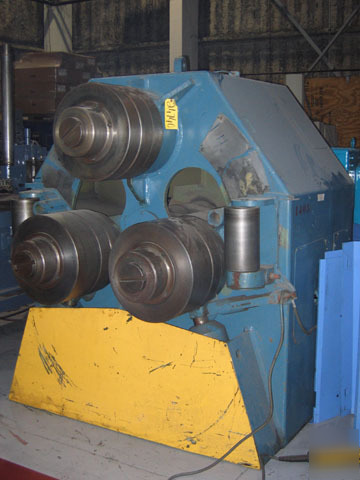

ROUNDO MODEL R7 HYDRAULIC ANGLE BENDING ROLL* Diameter of Bending Rolls: 20" Speed: Infinitely Variable All (3) Rolls Driven Double Pre-Bending Heavy Welded Steel Plate Construction Individual Hydraulic Power Adjustment to Lower Rolls EQUIPPED WITH: Sets of Rolls Fully Hydraulic Drive 30 HP AC Main Drive Hydraulic Motor Pendant Push Button Operation Electrical Controls CAPACITIES (Based on 60,000 PSI Tensile Strength): 6" x 6" x 1/2" Angles - Leg Out to 100" Minimum Diameter 5" x 5" x 1/2" Angles - Leg In to 110" Minimum Diameter 2" x 2" x 1/2" Smallest Angle Flats on Edge: 1" x 6" to 75" Minimum Diameter Flats on Flat: 2" x 11" x 50" Minimum Diameter I Beams and Channels: 12" Pipe: 6" to 85" Minimum Diameter Round Bar: 4" Square Bar: 3-1/2" Approximate Overall Dimensions: 75" L-R x 73" F-B x 85" H Approximate Weight: 20,000 Lbs. Serial Number: N/A P2 F.O.B. Elk Grove, IL - $ 67,500.00 * PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (outside US & Canada) Email: |
