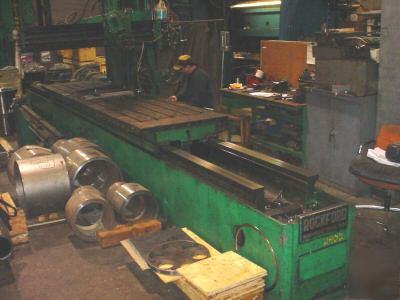

Rockford 12' openside shaper planer

UpUp


Subject: Rockford 12' openside shaper planer
ROCKFORD 12' OPENSIDE SHAPER PLANER
Table working surface 36" wide x 12' long
Holes in table top- 6 rows 1 1/4" diameter
(5) T-slots in table top- distance 6 1/4" center to center
Planing width 41" max. right hand head; 54" max left hand head
Vertical travel of rail tool head 14" maximum
Tool Shank size 2 3/4" x 3 1/2" maximum
Feeds: Hor & Vertical 0.010" to 1.000"
Cutting speed range low 0 to 50'; med 0 to 80'; high above 80'
Approx dimensions 6'w x 30' long; Approx weight 35,000 lbs.
Built in 1956. Equipped with extra 2' table extension
