Subject: Reed injection mold machine tg series 200 tg - A1 shape
INJECTION MOLD MACHINE REED TG SERIES 200 TG

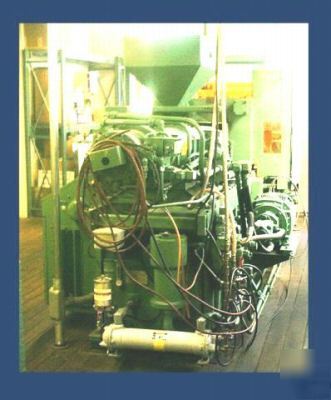

You can see from the pictures this is a well taken care of fully functional production machine
It has all blueprints, manuals and wiring diagrams included
MACHINE HAS BEEN EVALUATED BY DAVE WILLIAMS, FORMER REED PRENTICE MACHINE INSTALLER, AND CONSIDERED TO BE IN EXCELLENT RUNNING CONDITION
* MOLD CLAMPING FORCE 200 TONS
* MOLD CLAMPING FORCE 200 TONS
* MAXIMUM MOLD THICKNESS 19.625 in
* MINIMUM MOLD THICKNESS 5.375 in
* MAXIMUM MOLD SIZE (HOR X VERT) 19.625 in X 29.5 in
* PLATEN SIZE ( HOR X VERT) 29.5 in X 29.5 in
* SPACE BETWEEN TIE BARS 19.625 in
* DIAMETER OF TIE BARS 3.5 in
* MACHINE PRESSURE 2500 PSI
* MAXIMUM INJECTION PRESSURE 14400 / 21025 PSI
* MATERIAL INJECTED PER SHOT 36.8 CU INCHES
* MACHINE DRIVE MOTOR 30 HP
* HEATER BAND MAX KW 18.3
* OIL RESERVOIR CAPACITY (GAL) 110 GAL
* MACHINE LENGTH 17 ft 1 in
* MACHINE WIDTH 5 ft 9 in
* MACHINE HEIGHT 7 ft 3 in
* MACHINE WEIGHT 16,500 LBS
* Serial Number G-5000190
* 480 volts 3 Phase 62 amps
A deposit of $5000.00 is required ten days from close of the sale
You KNOW the Number of this type of machine for sale is SMALL but I am sure the number in this functioning condition is SMALLER
DO NOT THINK TO LONG IT MAY GET TAKEN BY A FASTER THINKER
THEN IT WILL NOT AVAILABLE
WE HAVE MORE OF THIS TYPE EQUIPMENT NOT LISTED AS OF YET
For more information contact with your questions or a phone # to call
If you don't see what you need that doesn't mean I don't have it. My Warehouse has Thousands of New Parts and Used Arrive Daily.
Let me Help You Save Money on your car part needs.
Massachusetts Residents Pay 5% sales Tax
