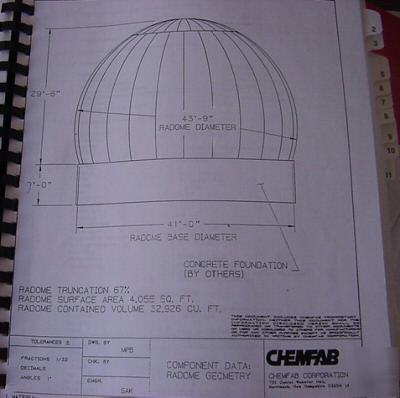

St Gobain Raydel R-42 Air Supported Radome Envelope This kevlar envelope is 43 feet in diameter and is connected to the concrete radome base by sandwiching the envelope between the pad base / metal bracket and an angle-iron flange/clamp which is bolted to the base. The installation instruction recommends that a representative be on site to check the base ring, airlock, blower and power systems and coordinate the envelope installation. 1) radome envelope, still in original crating and original packaging 2) blower assembly blower 12x6'blower 12x6' 3) Top Flanges to connect the radome to a site pad 5) Blueprints, as described above The original purchase price for the radome, was between $200K Engineering services to enable us to develop the plans to construct the radome pads was $65K. also available |
