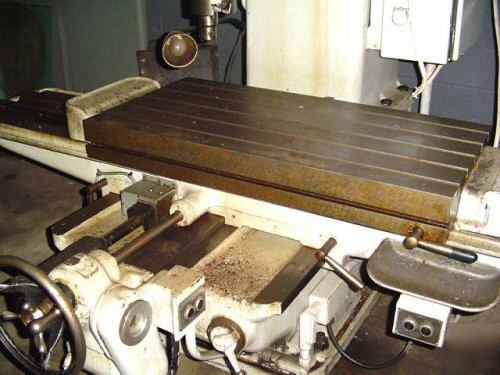

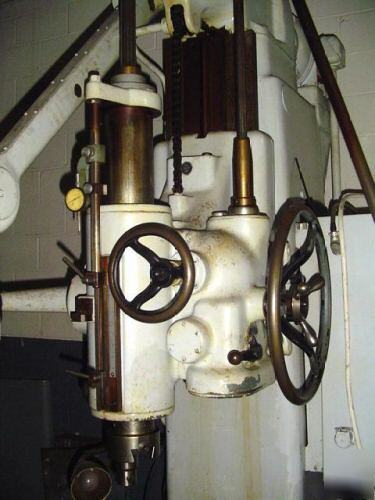

1 - No. 2A PRATT & WHITNEY Jig Boring Machine, Serial #28513, New approx 1957. Specifications: Area Of Table: 22" x 44" Depth Of Throat: 22" Spindle Speeds: (12) 37 To 1800 RPM Spindle Feeds: (8) .0005 To .010 IPR Longitudinal Travel Of Table: 36" Cross Travel: 18" Spindle Travel: 8" Distance Spindle To Table: 0" to 27 1/2" Travel Of Head On Column: 12 1/2" Approximate Dimensions: 95" FB x 107" LR x 109" H Approximate Weight: 10,920 Lbs. Equipped with: Boring Head in Spindle Other Spindle Tooling May Be Available
|
