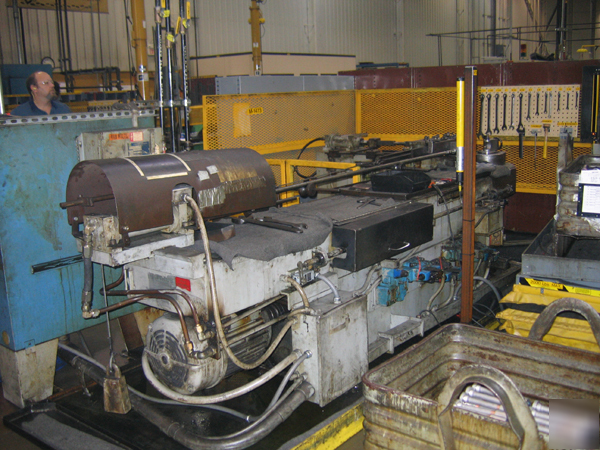

PINES MODEL 2 HYDRAULIC HIGH SPEED ROTARY TUBE BENDER*
Maximum Tube Radius: 12"
Maximum Tube Length: 7'5"
Average Maximum Bending Arm Speed: 11 RPM (High Speed)
Standard Operating Pressure: 2,000 PSI
Height from Floor to Centerline of Bending Form: 38"
Direct Acting Pressure Die
Automatic Hydraulic Mandrel Extractor
Mandrel Lubrication System
Pressure and Wiper Die Holders
20 HP AC Main Drive Motor; Electrical Controls
Pedestal Mounted Multiple Push Button Operation
Water Cooled Heat Exchanger
I.P.S. Extra Heavy Pipe: 2"
Non-Ferrous Tubing Y.P. to 12,000 PSI: 3-1/2" O.D. x .188" Wall
Non-Ferrous Tubing Y.P. to 25,000 PSI: 3-1/2" O.D. x .120" Wall
Steel Tubing Y.P. to 40,000 PSI: 3-1/2" O.D. x .083" Wall
Stainless Steel Tubing Y.P. to 60,000 PSI: 3" O.D. x .065" Wall
Steel Bar Round Y.P. to 40,000 PSI: 1-7/8" Diameter
Steel Bar Square Y.P. to 40,000 PSI: 1-11/16" Square
Angle Iron Y.P. to 40,000 PSI: 3" x 3" x 5/16"
Square Tubing Mild Steel: 2-1/2" x .083"
Rectangular Tubing Mild Steel (E-Plane): 1-1/2" x 3" x .148"
Rectangular Tubing Mild Steel (H-Plane): 1-1/2" x 2-1/2" x .120"
Approximate Overall Dimensions: 150" L-R x 72" F-B x 48" H
Approximate Weight: 7,500 Lbs.
Serial Number: 11266-68077 (New 1968)
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
