Okuma lr-15 chucker with 4TH axis OSP5020 lg control

UpUp


Subject: Okuma lr-15 chucker with 4TH axis OSP5020 lg control

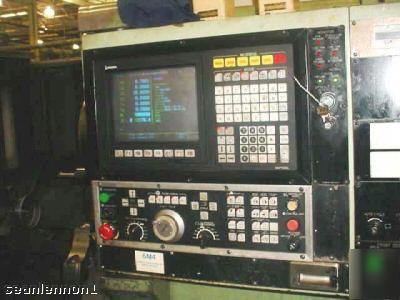

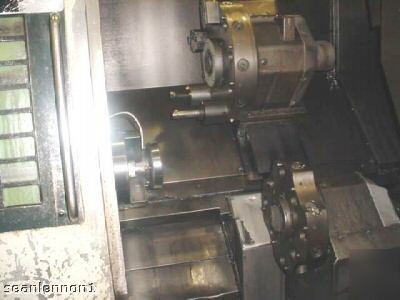

Specifications: Swing over bed: 17.71” Swing over the saddle ll.81” Swing over the Cross Slide 9.84” Maximum turning length 9.84” Travels Z Axis Upper & Lower 20.47” X Axis Upper 7.86” X Axis Lower 4.92” Z Axis Rapid Traverse Rate 591 IPM X Axis Rapid Traverse Rate 472 IPM Spindle Speeds 75-4,200 RPM Spindle Horsepower 15/20 HP Spindle Diameter 3.94” Spindle Nose A2-6 Diameter hole through spindle 2.44” Turrets” (2) Upper turret 10 Stations Lower turret 8 Stations Equipped with: OSP 5020L CNC Controls with graphics RS-232 Port l0” 3-Jaw Hydraulic Chuck Chip Conveyor
