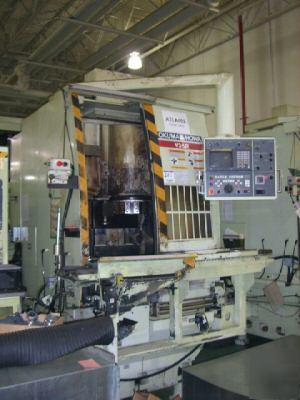

Subject: Okuma & howa cnc vertical turning center, 19.7" (19747)
MODEL..................................V35R
SERIAL NUMBER..........................8001 Year: 1999
Maximum Swing..........................19.69"
Turning Diameter.......................13.78"
Turning Length.........................16.93"
Maximum Chuck Diameter.................18"
Spindle Nose...........................A2-8
Through Hole Diameter..................3.03"
Spindle Speed Range....................25 to 2500 RPM
X-Axis Travel..........................9.25"
Z-Axis Travel..........................16.93"
Rapid Traverse Rate, X & Y Axis........787 IPM
Overall Machine Height.................120"
Floor Space Requirement................87" x 60"
Approximate Weight.....................15,500 Lbs.
PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
