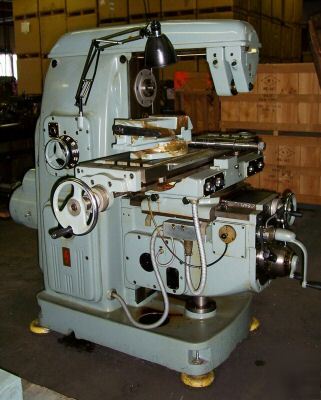

ยท Being sold at 40% off original price New Heavy Duty Horizontal Universal Milling Machine with ISO 40 taper spindle. Offers 12 spindle speeds from 30 to 1,200 RPM. Large easy to read dials permit rapid speed and feed rate selections. Power feed and rapid traverse for longitudinal, cross and vertical applications. Equipped with a 5-1/2 H.P. Main Motor, 1 H.P. Feed Motor and .17 H.P. Coolant Pump Motor. * This machine is equipped with wrenches, extra electrical components, lube gun, arbor and a machine vise. ORIGINAL PRICE $16,500.00 - SALE PRICE $9,900.00! Distance between T-Slots: 2-3/8" Longitudinal (Power/Manual): 24-1/2" / 25-1/2" Cross (Power/Manual): 8-1/2" / 10" Vertical (Power/Manual): 13" / 13" Distance from spindle axis to table: 14-1/2" max. / 1-3/16" min. Max. distance from spindle nose to arbor support: 20-1/4" Distance from spindle axis to overarm: 6" Distance from rear side of table to vertical guideway: 11" max. / 1" min. Longitudinal: 5/8 to 31-1/2 IPM Horizontal Universal Milling Machine |
