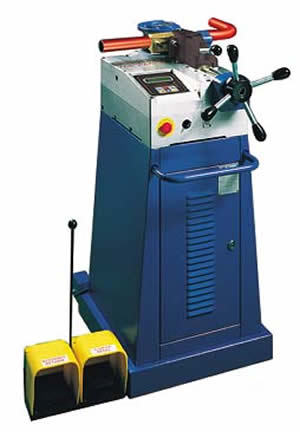

NEW ERCOLINA TOPBENDER 60 ROTARY DRAW BENDER
WE ARE AN AUTHORIZED ERCOLINA DISTRIBUTOR
* Bends ferrous and non-ferrous materials 1/4" to 2-1/2"
* Ideal for bending pipe, tube, squares, rectangles, solids and other profiles
* Replaces outdated ram style hydraulic benders
* CLR as small as 2D with non-mandrel tooling
* Programmable to bend angles 0 to 180º
* Bends to 90º in seven (7) seconds
* Programmable material spring back compensation
* NC touch pad panel (10) programs (9) bends within each
* Patented tooling system with multiple radii available
* Two bending speeds for increased accuracy
* Remote foot pedal for hands-free operation
* Patented swing away counter bending die vise
* Built in base wheels and lift handle
* Accepts Ercolina's two axis A40/P positioning table
* Hex mount tooling system for rapid changeover
* One (1) year limited warranty
2D (depending on material and wall thickness)
(10) individual programs with (9) bends within each
Support bracket for counter bending die
Bending capacities based on centerline radius two times diameter on mild steel
Patented swing away counterbending die
vise increases bending productivity.
"Standard on all Ercolina rotary draw benders"
If you have any questions about this product contact us
